2018 lancer build

Postby jusrocky » August 30th, 2018, 2:46 pm

Ok so after seeing all these audio build I decided to try my hand on one. The car is practically brand new and now did the first service so there won’t be much modification towards getting the warranty void.
Might be a bit boring but still worth a try.

So here goes,

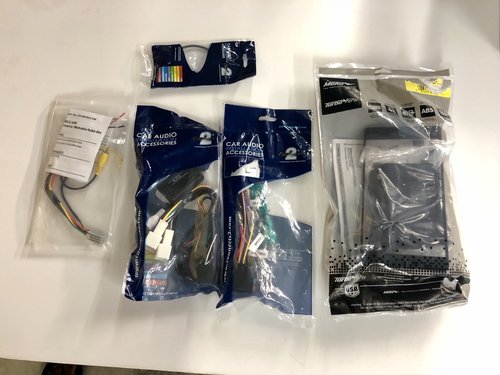

I will be using

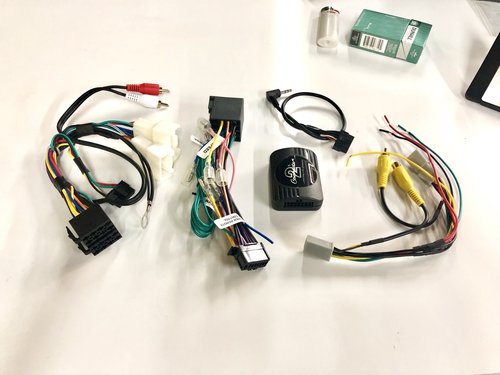

Avh- 2440NEX head unit
connect 2 harness for head-unit
Steering wheel module
Reverse camera module
6v to 12 v converter
And USB adapter

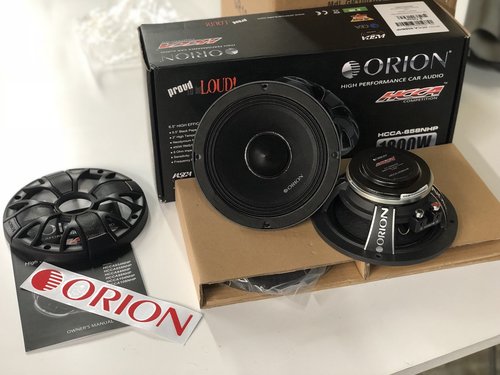

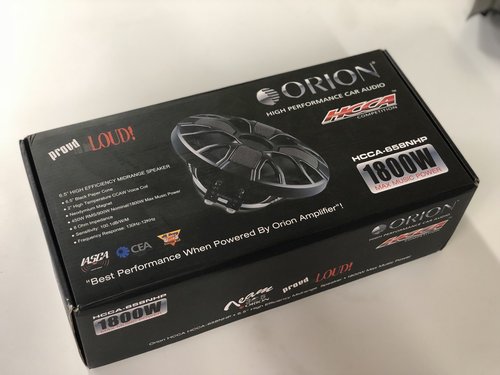

4x6” Orion hcca
2 pair nb1’s
Orion xtr 12” sub
Orion 2700.5 amp (5ch amp)
No sound dampening

0 guage XS power wire
Streetwires rca cables
Stinger speed wire

Might do some under kit lights as well
(Depends) on time
So let’s start







Advertisement
User avatar
casper
punchin NOS
Posts: 4974
Joined: April 18th, 2006, 11:44 am
Location: P.O.S & Diego Martin

Re: 2018 lancer build

Postby casper » August 30th, 2018, 3:40 pm

Subscribed :o

User avatar
nervewrecker
3NE 2NR Power Seller
Posts: 20778
Joined: July 31st, 2007, 2:27 pm
Location: The world is fl4t

Re: 2018 lancer build

Postby nervewrecker » August 30th, 2018, 4:26 pm

Ah yes, forum like it needed a small jumpstart.

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » August 30th, 2018, 7:19 pm

casper wrote:Subscribed :o

Lol

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » August 30th, 2018, 7:33 pm

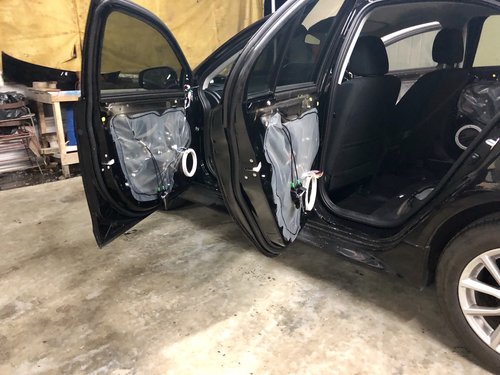

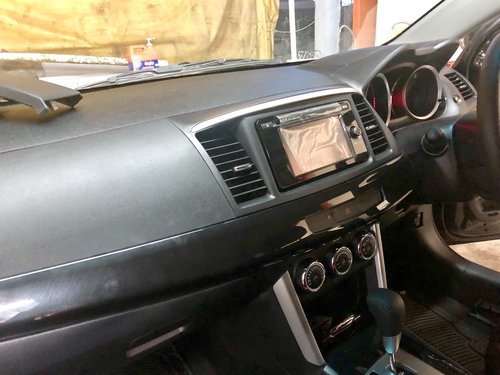

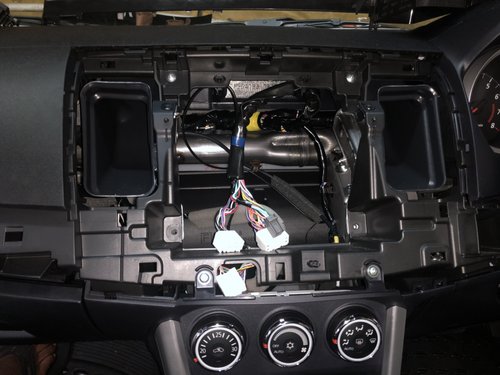

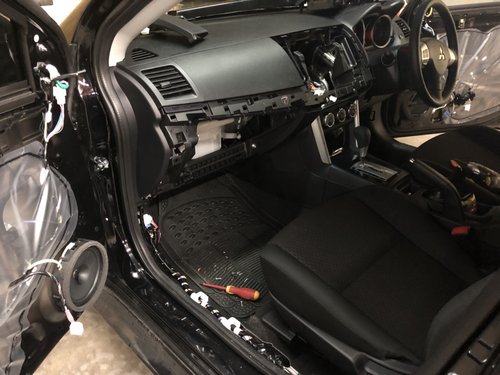

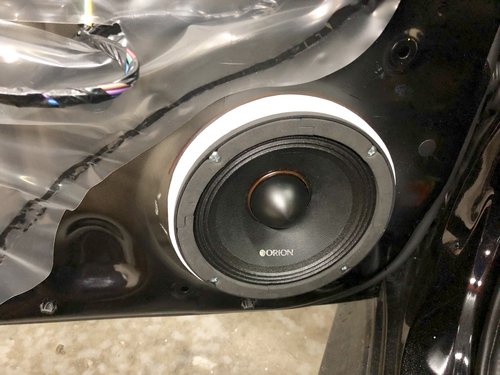

As the night progresses
The attachment IMG_4820.JPG is no longer available
Attachments

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » August 31st, 2018, 1:57 am

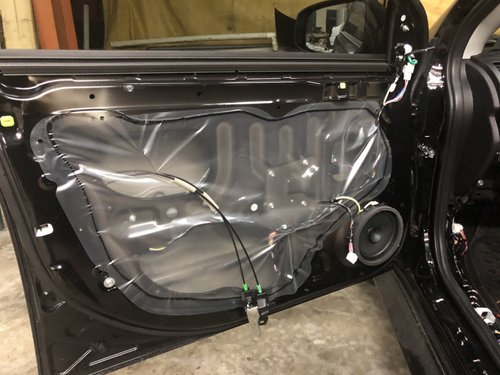

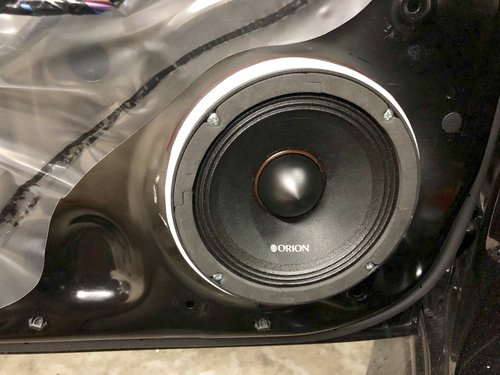

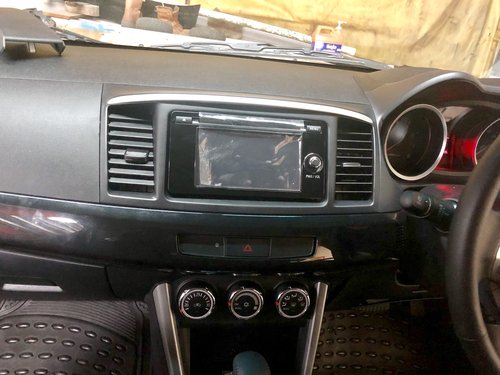

Think I getting somewhere

User avatar
Rainman
3ne2nr Toppa Toppa
Posts: 5128
Joined: July 25th, 2005, 11:15 am
Location: Not offshore!
Contact:

Re: 2018 lancer build

Postby Rainman » August 31st, 2018, 7:47 am

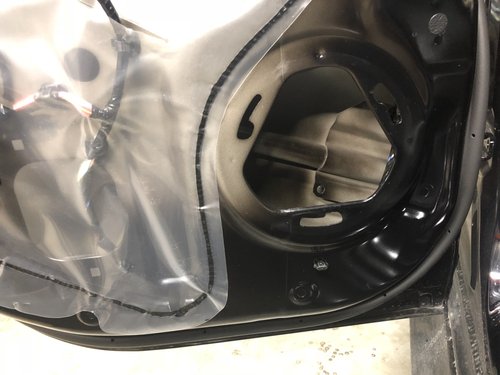

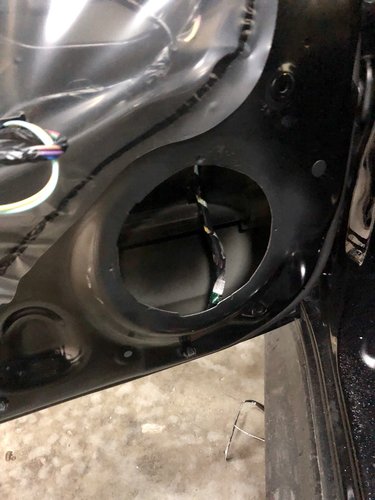

1. Why no dampening? there are endless gaping spaces in your door; unless you're not expecting any midbass in your front stage.

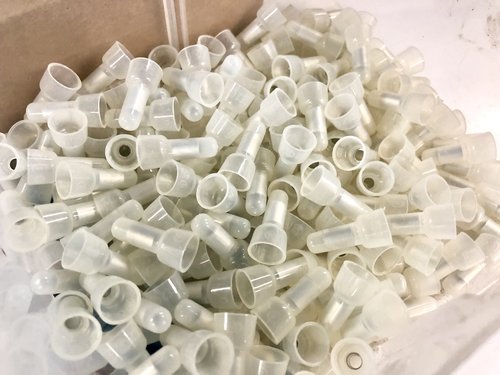

2. Great idea using plug n play harnesses, but please don't use those god-awful butt-splice connectors. Take some time and practice your solder/heatshrink skills.
3. Where are you mounting the tweeters? off/on-axis?
4. Any plans for additional processing?

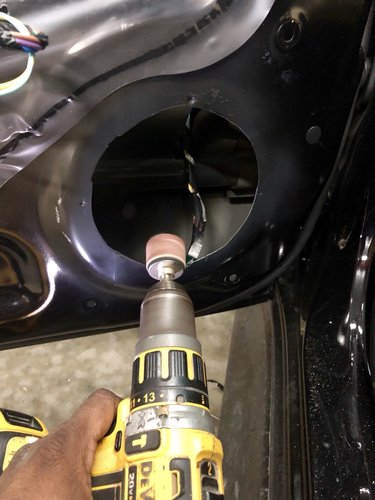

5. Prime and repaint the speaker opening you grinded.

Other than that, good luck with the build. I'm subscribed.

User avatar
black start
TriniTuner 24-7
Posts: 7865
Joined: February 25th, 2010, 10:42 am
Location: conquering the pothole solodex

Re: 2018 lancer build

Postby black start » August 31st, 2018, 7:59 am

Subscribed

User avatar
Redo357
Riding on 13's
Posts: 1
Joined: June 21st, 2017, 9:43 am

Re: 2018 lancer build

Postby Redo357 » August 31st, 2018, 9:01 am

Not bad at all

User avatar
Morpheus
TriniTuner 24-7
Posts: 10673
Joined: July 22nd, 2004, 2:24 am

Re: 2018 lancer build

Postby Morpheus » August 31st, 2018, 9:51 am

Inside....

Brand new vehicle. You braver than most

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » August 31st, 2018, 12:34 pm

Rainman wrote:1. Why no dampening? there are endless gaping spaces in your door; unless you're not expecting any midbass in your front stage.
2. Great idea using plug n play harnesses, but please don't use those god-awful butt-splice connectors. Take some time and practice your solder/heatshrink skills.
3. Where are you mounting the tweeters? off/on-axis?
4. Any plans for additional processing?
5. Prime and repaint the speaker opening you grinded.

Other than that, good luck with the build. I'm subscribed.



1. As I said the car is brand new and air tight so not going to interfere with the door for damping (probably later on if needed)

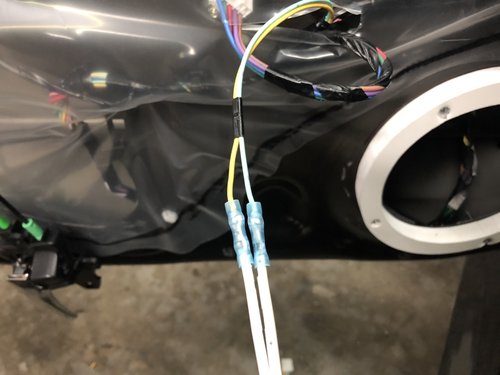

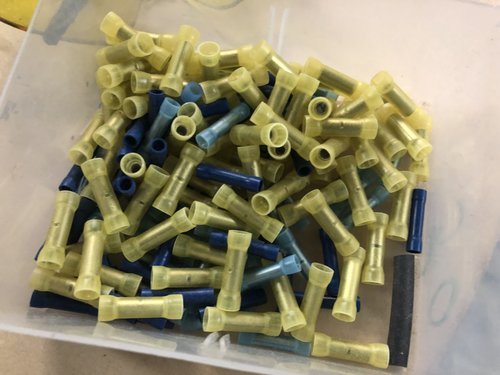

2. Change to these connectors instead

3. Tweeters On the doors. You will see later on the in the build.... no rush jus relax and enjoy...
4. No processing right now (money done)
5. That will be done.

Thanks

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 1st, 2018, 11:48 am

Morpheus wrote:Inside....

Brand new vehicle. You braver than most

Lol

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 1st, 2018, 11:49 am

black start wrote:Subscribed


Nice

User avatar
SR
Chief Cook & Instigator
Posts: 13335
Joined: April 7th, 2003, 8:11 pm

Re: 2018 lancer build

Postby SR » September 1st, 2018, 5:50 pm

Use some damping in the area behind the speaker. It will make a big difference. About 7"x7"

kamakazi
Riding on 18's
Posts: 1841
Joined: February 14th, 2009, 10:32 am

Re: 2018 lancer build

Postby kamakazi » September 1st, 2018, 6:36 pm

jusrocky wrote:
Rainman wrote:1. Why no dampening? there are endless gaping spaces in your door; unless you're not expecting any midbass in your front stage.
2. Great idea using plug n play harnesses, but please don't use those god-awful butt-splice connectors. Take some time and practice your solder/heatshrink skills.
3. Where are you mounting the tweeters? off/on-axis?
4. Any plans for additional processing?
5. Prime and repaint the speaker opening you grinded.

Other than that, good luck with the build. I'm subscribed.



1. As I said the car is brand new and air tight so not going to interfere with the door for damping (probably later on if needed)
2. Change to these connectors instead

3. Tweeters On the doors. You will see later on the in the build.... no rush jus relax and enjoy...
4. No processing right now (money done)
5. That will be done.

Thanks
That is definitely not air tight bro.

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 1st, 2018, 7:20 pm

SR wrote:Use some damping in the area behind the speaker. It will make a big difference. About 7"x7"


Will do

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 1st, 2018, 7:21 pm

kamakazi wrote:
jusrocky wrote:
Rainman wrote:1. Why no dampening? there are endless gaping spaces in your door; unless you're not expecting any midbass in your front stage.
2. Great idea using plug n play harnesses, but please don't use those god-awful butt-splice connectors. Take some time and practice your solder/heatshrink skills.
3. Where are you mounting the tweeters? off/on-axis?
4. Any plans for additional processing?
5. Prime and repaint the speaker opening you grinded.

Other than that, good luck with the build. I'm subscribed.



1. As I said the car is brand new and air tight so not going to interfere with the door for damping (probably later on if needed)
2. Change to these connectors instead

3. Tweeters On the doors. You will see later on the in the build.... no rush jus relax and enjoy...
4. No processing right now (money done)
5. That will be done.

Thanks
That is definitely not air tight bro.



Explain please
Thanks

kamakazi
Riding on 18's
Posts: 1841
Joined: February 14th, 2009, 10:32 am

Re: 2018 lancer build

Postby kamakazi » September 1st, 2018, 7:38 pm

There are usually holes at the bottom of the door to let water out as it runs down the glass.... And well all those plastic clips aren't meant to seal of air either... So air can get in and out... Water Can potentially wet the back of the speaker.

User avatar
nervewrecker
3NE 2NR Power Seller
Posts: 20778
Joined: July 31st, 2007, 2:27 pm
Location: The world is fl4t

Re: 2018 lancer build

Postby nervewrecker » September 1st, 2018, 9:09 pm

There is a shield that sells for the speakers preventing them for getting wet.
I have never met any that got wet though. Humidity may be an issue in there hence car audio speakers having treated cones.

User avatar
rollingstock
TriniTuner 24-7
Posts: 16444
Joined: June 29th, 2009, 8:21 am
Location: Ain't got no chill!

Re: 2018 lancer build

Postby rollingstock » September 1st, 2018, 10:57 pm

Sufficient midbass from the doors stock.
I have the hushmat to do the doors but crossed at 65hz and sounded good without it so far.

That deck would have sufficient processing for a daily system.

The nb1 I wound get rid off, especially if going with the stock door location, would be extremely bright.

The back dash rattles like a beyotch. Trunk would definitely need dampening, and the driver side rear fender.

I'll post a pic of my rear door tweater placement.

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 2nd, 2018, 4:35 am

kamakazi wrote:There are usually holes at the bottom of the door to let water out as it runs down the glass.... And well all those plastic clips aren't meant to seal of air either... So air can get in and out... Water Can potentially wet the back of the speaker.


I was thinking that same thing
But when you close the door you does feel a tickle in your ear so that why I say it was air tight

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 2nd, 2018, 4:41 am

rollingstock wrote:Sufficient midbass from the doors stock.
I have the hushmat to do the doors but crossed at 65hz and sounded good without it so far.

That deck would have sufficient processing for a daily system.

The nb1 I wound get rid off, especially if going with the stock door location, would be extremely bright.

The back dash rattles like a beyotch. Trunk would definitely need dampening, and the driver side rear fender.

I'll post a pic of my rear door tweater placement.


Back dash seriously

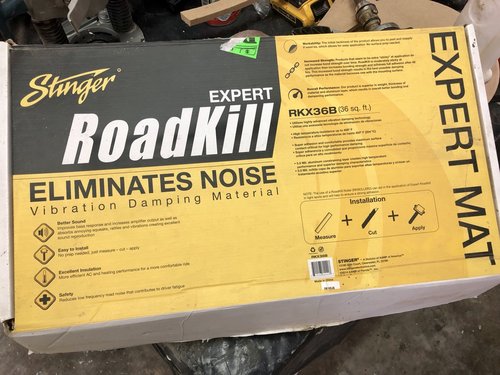

I have stinger road kill

Post the pics when you get time

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 2nd, 2018, 4:43 am

65hz
Wayzzzzzzzzz

User avatar
rollingstock
TriniTuner 24-7
Posts: 16444
Joined: June 29th, 2009, 8:21 am
Location: Ain't got no chill!

Re: 2018 lancer build

Postby rollingstock » September 2nd, 2018, 3:23 pm

It's the plastic finisher on the backdash.
Bought some foam tape, haven't gotten around to it yet. Just stuck some foam pads the wife had to put between her toes.

User avatar
rollingstock
TriniTuner 24-7
Posts: 16444
Joined: June 29th, 2009, 8:21 am
Location: Ain't got no chill!

Re: 2018 lancer build

Postby rollingstock » September 2nd, 2018, 3:38 pm

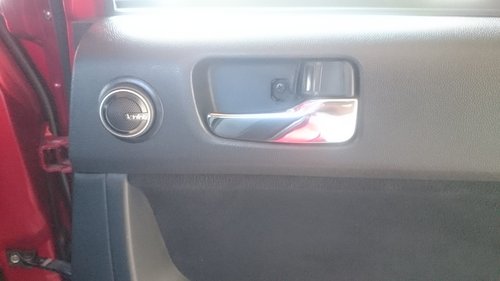

Rear tweeter

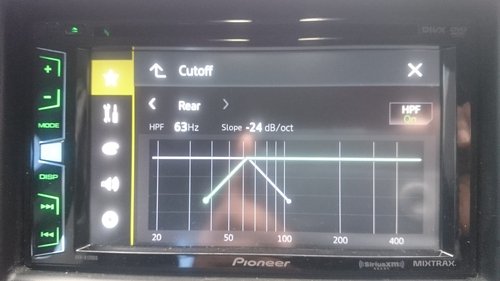

Crossover setting.


User avatar
rollingstock
TriniTuner 24-7
Posts: 16444
Joined: June 29th, 2009, 8:21 am
Location: Ain't got no chill!

Re: 2018 lancer build

Postby rollingstock » September 2nd, 2018, 3:41 pm

Faital pro 6fe200 in the doors, took out the fe100
Wanted something with a 4 ohm impedance and that could keep up with the dd 8's

https://youtu.be/2hIR2IXPXto

A small vid with the sub off and then on for a bit.

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

2018 lancer build

Postby jusrocky » September 2nd, 2018, 4:38 pm

rollingstock wrote:Rear tweeter




Nice but sorry I not cutting the door upholstery
Show we the sub nahhhh

User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 2nd, 2018, 4:44 pm

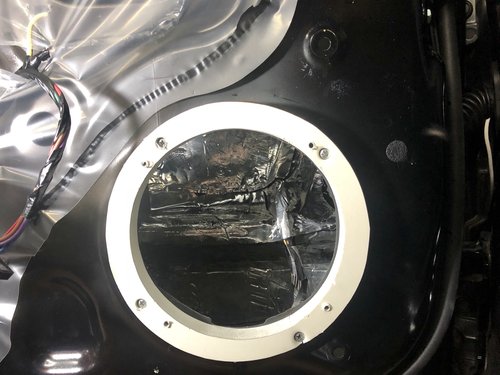

Ok so use some damping Behind the Speaker so it should be good for the hr

User avatar
rollingstock
TriniTuner 24-7
Posts: 16444
Joined: June 29th, 2009, 8:21 am
Location: Ain't got no chill!

Re: 2018 lancer build

Postby rollingstock » September 2nd, 2018, 6:12 pm

jusrocky wrote:
rollingstock wrote:Rear tweeter



Nice but sorry I not cutting the door upholstery
Show we the sub nahhhh


My car is 10yrs old, I have no qualms in cutting the door.

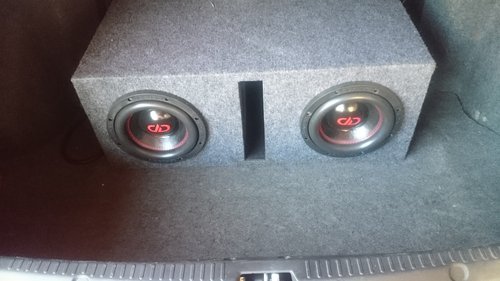

Nothing special with the subs. Tuned low 30's


User avatar
jusrocky
3NE 2NR for life
Posts: 132
Joined: March 31st, 2008, 11:08 pm
Location: all over
Contact:

Re: 2018 lancer build

Postby jusrocky » September 2nd, 2018, 6:16 pm

rollingstock wrote:
jusrocky wrote:
rollingstock wrote:Rear tweeter



Nice but sorry I not cutting the door upholstery
Show we the sub nahhhh


My car is 10yrs old, I have no qualms in cutting the door.

Nothing special with the subs. Tuned low 30's



Ok well this car is brand new and now did first service so no cuts

30hz i not going so low nahhhhh

Advertisement

Return to “I.C.E. / Car Audio Tech”

Who is online

Users browsing this forum: No registered users and 3 guests
