L200 K74T: Approaching 200K service

Postby Streetwise Performance » October 24th, 2013, 2:50 pm

Ok, my reliable K74T non-turbo van is at 181,xxxKm so I am ordering up all the parts needed for the 200K service. I had all the old parts from the 100K service so getting some items was pretty easy. So far I have timing belt, balance shaft belt and the 3 fan belts (all Gates).
Also, today I ordered 2 tensioner bearings for T/belt and balance shaft belt. For the suspension I ordered front cradle bushings (upper & lower) and Moog ball joints.

At this mileage, what else do you recommend I should change to keep this vehicle as reliable as possible? No oil leaks whatsoever but what are the seals that usually need changing? Never changed clutch either. Driveshaft Center bearing? Water pump? Glow plugs?
Hoping to hear any other suggestions from the 4x4 guys.

Cheers!

Advertisement
Streetwise Performance
3NE 2NR Power Seller
Posts: 84
Joined: December 17th, 2005, 2:27 pm
Location: Reform

Re: L200 K74T: Approaching 200K service

Postby Streetwise Performance » October 25th, 2013, 3:56 pm

I read through some service manuals but could not find any reference to a service point or change interval for the water pump. Somehow I think it's not meant to be changed every 100,000 Km like how we do on cars. So i'll just do a radiator flush and drop in fresh coolant.

User avatar
speedaholic
2NR phototakerouter
Posts: 2105
Joined: June 27th, 2008, 12:30 am
Location: Kelly Village
Contact:

Re: L200 K74T: Approaching 200K service

Postby speedaholic » October 29th, 2013, 3:35 am

Have the Engine removed... replace the front and rear crank shaft seals, replace cam shaft seal and balance shaft seals also... replace Pilot bearing located on the fly wheel, change clutch pressure plate and release bearing.... oil and filters.. get injectors serviced... thats about it for engine...

susupension, upper and lower ball joint, all bushings(strut and sway bars, strut link buhsings etc)

have Steering ends checked(regreased). check pitman and idler arms joints for any play..
have Rear leaf spring shakle bushings checked..

gearbox, transfer case and Differential oils must also be replaced...

use 75w90 or nearest equivalent API GL4 gear oil only!

User avatar
speedaholic
2NR phototakerouter
Posts: 2105
Joined: June 27th, 2008, 12:30 am
Location: Kelly Village
Contact:

Re: L200 K74T: Approaching 200K service

Postby speedaholic » October 29th, 2013, 3:35 am

Be sure to buy OEM seals for shafts on engine, others dont last at all

Streetwise Performance
3NE 2NR Power Seller
Posts: 84
Joined: December 17th, 2005, 2:27 pm
Location: Reform

Re: L200 K74T: Approaching 200K service

Postby Streetwise Performance » October 30th, 2013, 1:09 pm

Great heads up man speedaholic, seems your suggestions are right on with this upcoming service. I should have enough time to get most of those parts you mentioned.

I realized my gearbox is the V5M21 so I going to order clutch, pp, release bearing and pilot for that box. Already worked out all the part #'s.


gearbox, transfer case and Differential oils must also be replaced...


I have to do this ASAP, gears going in hard. Changing engine and g/box oil this week.

Engine bay needed a wash so Sunday I used breeze/kerosene mix and a pressure washer to get it back to specs!!

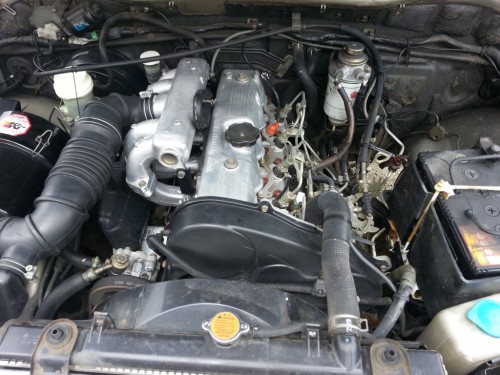

L200 engine bay

User avatar
speedaholic
2NR phototakerouter
Posts: 2105
Joined: June 27th, 2008, 12:30 am
Location: Kelly Village
Contact:

Re: L200 K74T: Approaching 200K service

Postby speedaholic » December 6th, 2013, 9:50 am

good stuff..! hope you get through with everything..

Streetwise Performance
3NE 2NR Power Seller
Posts: 84
Joined: December 17th, 2005, 2:27 pm
Location: Reform

Re: L200 K74T: Approaching 200K service

Postby Streetwise Performance » January 23rd, 2015, 2:26 pm

Thanks bro, I got through last weekend Jan 2015. Mileage now at 204,000 km.
Service done:
All front seals (Cam, crank, balance shaft)
Timing belt + Balance shaft belt, Tensioner pulleys (2)
Fan belts (A/C, P/S, Alt)
Coolant


I would recommend this mechanic to anyone since he is well certified and professional. The only problem he had was the gear on the crank snout got seized up. You can see how rusty it is in the pics. I am happy overall with the job done, the time it took and the cost. The next big service to be done is the clutch but its holding out so I am just gathering the parts piece by piece so its easy on my pocket. Now on to the pics....

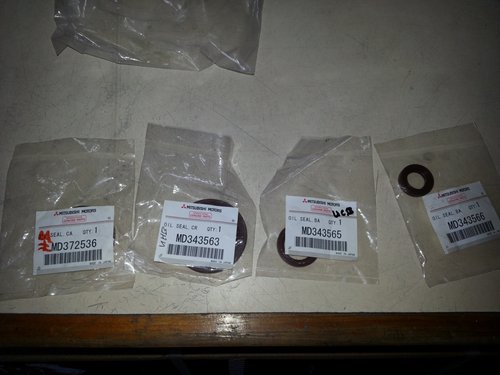

All front seals in genuine

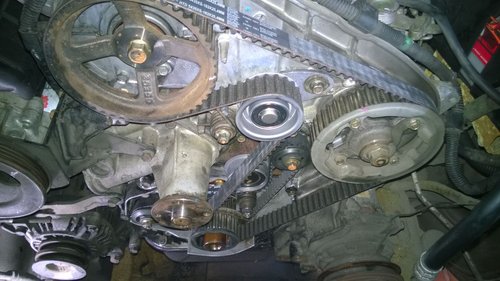

Belts and tensioner pulley

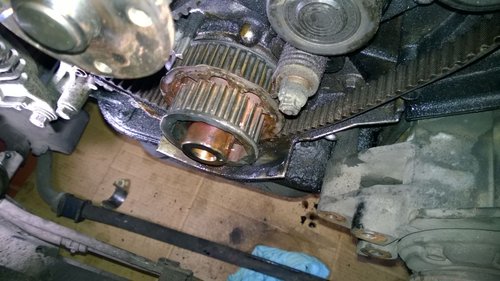

Dirty and seized up

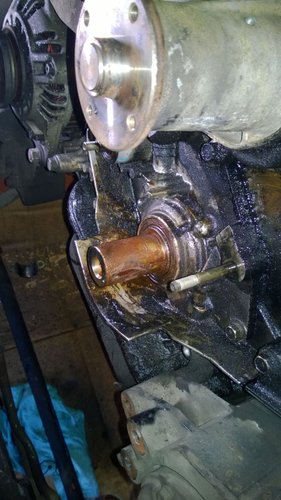

Crank snout with gear removed

Re-assembled and clean



Still pending: clutch, pressure plate, release bearing, rear crank seal, tappet cover gaskets, thermostat. All suspension bushings.

User avatar
speedaholic
2NR phototakerouter
Posts: 2105
Joined: June 27th, 2008, 12:30 am
Location: Kelly Village
Contact:

Re: L200 K74T: Approaching 200K service

Postby speedaholic » February 2nd, 2015, 10:15 am

VEry nice man! where'd you get the genuine seals to buy?? and how much u paid? if u dont mind?
Should have gotten the Gates power grip green stripe timing belts.. closest to OEM as u can get..

Streetwise Performance
3NE 2NR Power Seller
Posts: 84
Joined: December 17th, 2005, 2:27 pm
Location: Reform

Re: L200 K74T: Approaching 200K service

Postby Streetwise Performance » April 13th, 2016, 1:34 pm

yeah man thanks, the mechanic had the small one for balance shaft $75, and the others bought at various parts outlets $100-$145.

Now update on L200 maintenance Mileage now 227,xxx km. Last oil change at 219K using Royal Purple. Clutch master giving trouble, OEM repair kit on the way. I had bushings here a long time and just got some suspension parts to do overhaul but original suspension holding up still. Clutch is also holding up. See some pics of parts I'm collecting: pitman arm, ball joints, tie rods, bushings

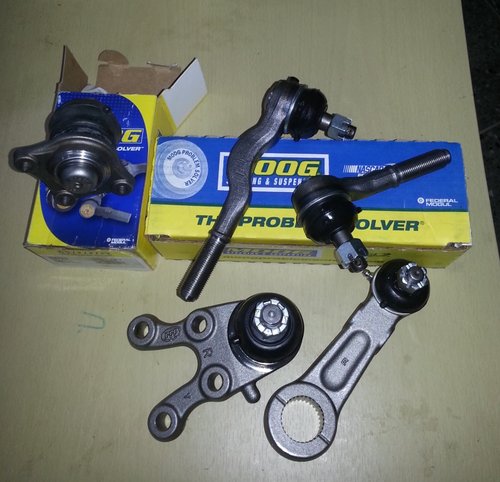

L200 Moog parts

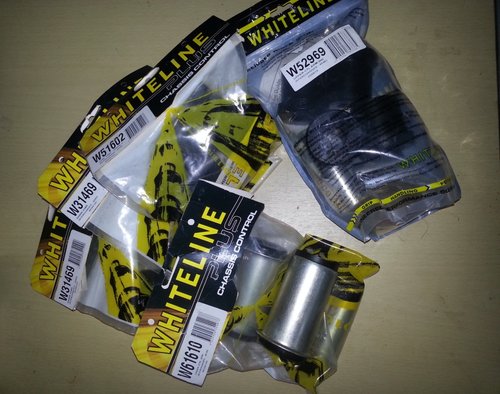

L200 Whiteline Bushing

User avatar
Mercenary
Riding on 18's
Posts: 1741
Joined: December 19th, 2008, 11:19 am
Location: West Indies

Re: L200 K74T: Approaching 200K service

Postby Mercenary » April 13th, 2016, 2:09 pm

price on the seals bro?

I bought fake ones and it didnt last long. Learn my lesson.

User avatar
speedaholic
2NR phototakerouter
Posts: 2105
Joined: June 27th, 2008, 12:30 am
Location: Kelly Village
Contact:

Re: L200 K74T: Approaching 200K service

Postby speedaholic » April 15th, 2016, 10:07 pm

always be sure to get Genuine oil seals.. these parts places in trinidad dont care about people and always bring in sub standard parts and sell us for high prices!

GA16
Sweet on this forum
Posts: 349
Joined: August 15th, 2003, 3:18 pm
Location: South

Re: L200 K74T: Approaching 200K service

Postby GA16 » September 28th, 2016, 6:07 am

Where can I get suspension parts for my 2008 sportero?

User avatar
speedaholic
2NR phototakerouter
Posts: 2105
Joined: June 27th, 2008, 12:30 am
Location: Kelly Village
Contact:

Re: L200 K74T: Approaching 200K service

Postby speedaholic » November 2nd, 2016, 1:41 pm

ROC in bamboo

Streetwise Performance
3NE 2NR Power Seller
Posts: 84
Joined: December 17th, 2005, 2:27 pm
Location: Reform

Re: L200 K74T: Approaching 200K service

Postby Streetwise Performance » October 21st, 2019, 12:41 pm

Fast forward to 10/2019 :D :D

I have a couple updates to report.


Mileage now 278,xxx Km
Changed out clutch, pressure plate, release bearing, slave cylinder. Rear crank seal was also changed as gearbox was already out.

New HiFly tyres but I'm having issues with balancing them. Subsequently passed inspection.

Repairs done to alternator, charging is good but vacuum pump has slight leak.
Service done to starter.

Crank pulley developed a play and needed to be repaired.

I may have missed a few things since last update was 2 years ago.

Current issue is noise coming from rear suspension. Funny thing is noise only occurs while driving through rain/wet conditions. I suspect the shocks are the culprit and would try replacing those first as a method of elimination.

Other than the few minor issues, van is start and go. I'll try to update more often.
