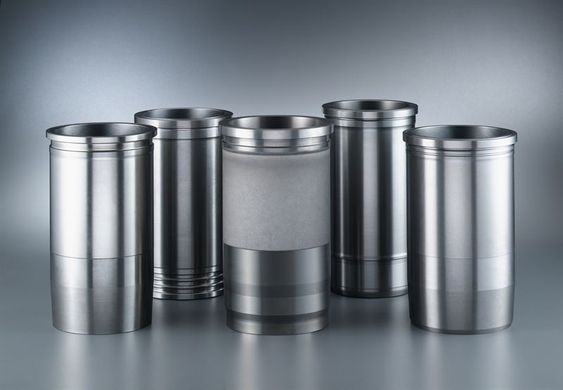

Cylinder Liner, also known as Sleeves, is fitted inside the cylinder and works as a shielder and the component to protect the inside part of a cylinder with motor friction. We can call this liner a sleeve because there are places in the world where it is known as a liner, and other sites call it sleeves.
A cylinder functions according to temperature and pressure. The piston creates friction by sliding up and down inside the ring. There is a long period of service required by the Car or truck engine, which could work under friction regularly, but inside resistant proof, the cylinder liners would protect it for a long time.
There are three categories of Cylinder Liner; which are used widely:
1. Dry Cylinder Liner
You could consider this liner the piston protector mainly because of its resistance against High temperature. It can work as a soldier against impurities and temperature. It comprises high-grade materials such as Cast Iron and nickel-ceramic coating.
This is the thinnest liner or the most delicate Cylinder sleeves among its different types. Its adjusting nature with the engine jacket makes it unique, and these types of liners do not relate to the coolant part of the engine.
The dry liners are made looking like the barrel with a rib on top. The spine stands firm on the liner in footing in the chamber block. The liner fits cosily into the chamber. Right contact of the liner with the chamber block is fundamental for effective cooling of the liner.
Likewise, gas pressure, cylinder push, and effect stacking during ignition are gone against by the consolidated thickness of the liner and chamber. Consequently, dry liners are more slender, with a divider thickness shifting from 1.5 mm to 3 mm, and are generally used to fix destroyed liners. Dry liners are not in coordinated contact with cold water.
2. Wet Liner
It has a slightly distinct method to guard an engine’s piston than the Dry liner. The components are likely to be similar. The direct contact of coolant is possible with these wet cylinder liners. There are mini holes in the whole part of this liner because of the disbursement of impurities and heat.
Wet liners are supposed because chilly water comes into contact with the liner. This liner includes a rib at the top, which squeezes into the depression made in the chamber block. For preventing forestall spilling of cold water into the crankcase, the lower end of the wet liner is fixed with the assistance of a fixing ring or pressing ring.
As the damp liner needs to endure the strain, push, and effect stacking of the gas, the divider thickness of the liners is expanded and made to be more prominent than that of the dry liner.
For the most part, the divider thickness of the wet liner goes from 3mm to 6mm. The outside of the liner is covered with aluminium to shield it from erosion. Wet liners are cooled better compared to dry liners. When it gets worn or exhausted, it tends to be effectively eliminated.
3. Finned Cylinder Liners
The material of all the liners is more or less similar because of their heat-resistant nature. The passing of air and heat, and impurities is the primary function of this liner. This sort of liner is intended for the air-cooled motor, and inactivity works similarly to the dry chamber liner in that the cooling vehicle for the engine is air.
Comparison in the Wet and Dry Liners
The wet liner can be handily supplanted, while the dry liner requires special hardware as it is closely fitted to the chamber block. A wet liner is cooled because it comes into direct contact with cold water, though a dry liner doesn’t come into direct contact with cold water. Along these lines, the operating temperature of the dry liner is higher than that of the wet liner.
A wet liner doesn’t need exact completion outwardly, though a dry liner requires accurate wrapping up. Completing can be cultivated in a wet liner before gathering, while dry liners require completing after getting together.
Conclusion
There are three types of cylinders we have come across, and all of them are best to use in the inner part of the engine because of their material and components.
Hollow shape cylinder liners are very much compatible to use for the long life of the engine and its structure. The friction of pistons and their coefficients is low because of the resistant nature of liners. These liners maintained the friction coefficient on the surface of the piston.
It should be easy to replace the cylinder liners and coat them with different materials to work smoothly. Continuous friction inside the cylinder by the piston would increase the diameter by melting some parts of the cylinder. Liners would be the only part of making a distance between the piston and the cylinder inner part.
