Help needed with AC fan, Mitsu Galant GDI.

Rudman · Postby **Rudman** » April 10th, 2006, 9:54 am

I making this post for a co-worker of mine who owns a galant.

He says that his AC fan runs at two speed. Lately, he's not getting the higher speed coming on. He changed a resistor leading to the fan, but this does not help. There is no overheating issue with the car at the moment. The connector to the resistor has 3 wires, 2 that looks like 12 awg and a fine wire, about 24awg. Two Questions:

1. Anyone had experience dealing with this problem on a galant before?

2. What is the purpose of the fine wire on the resistor connector?

mitsugdi · Postby **mitsugdi** » June 8th, 2006, 12:50 pm

i have the same problem presently. however the unit with the 3 wires is burnt and the ac is working intermittently. :?:

i_kronik · Postby **i_kronik** » August 6th, 2006, 5:11 pm

want a used working unit for cheap....call 7994732...

mitsugdi · Postby **mitsugdi** » August 6th, 2006, 10:13 pm

i_kronik wrote:want a used working unit for cheap....call 7994732...

Is it the blower motor resistor you are speaking of ?.Thats the unit under the dash by the glove compartment.Well I need one because mine in burnt.

squinty_eye · Postby **squinty_eye** » September 18th, 2006, 11:03 pm

Seems the blow motor resistor keeps burning wires going to it. Need to know where I can get a replacement connector going to that resistor.

stang · Postby **stang** » September 19th, 2006, 11:55 am

well i'm looking for a new blower...anyone knows where i can get it?? (2000 Galant GDI)

mitsugdi · Postby **mitsugdi** » September 21st, 2006, 10:32 am

stang wrote:well i'm looking for a new blower...anyone knows where i can get it?? (2000 Galant GDI)

want a used working unit for cheap....call 7994732...

squinty_eye · Postby **squinty_eye** » August 1st, 2011, 10:43 am

Need to find the Blower Fan Speed Module MR460293 as well as re-wire the connection, looks like the wires are burnt out.
I opened up an old module I had, electronics looked simple enough was just a MOSFET transistor attached to a large heatsink (grey portion) and some basic control circuitry.

squinty_eye · Postby **squinty_eye** » June 1st, 2013, 7:27 pm

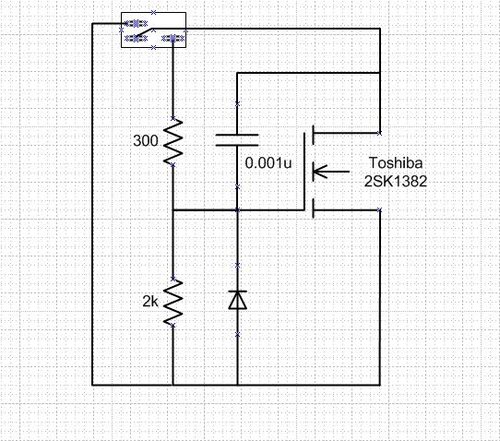

Fine wire is a control wire to determine how hard to drive the MOSFET transistor where the 300 ohm resistor is located. the heatsink is primarily used to cool the MOSFET transistor since it will be handling a lot of current and acts as the load resistor in series with the A/C fan blower.
