Prius HV battery replacement

Supra GT-FOUR · Postby **Supra GT-FOUR** » May 12th, 2024, 7:27 pm

As title states
Began with testing of new NiMh cells 28 total.
Removed battery from trunk a bit heavy/bulky to handle alone (somehow a weakling like myself managed).

Cleaned busbars and reinstalled into plastic holder.
Cleaned hybrid cooling fan blower wheel + housing.

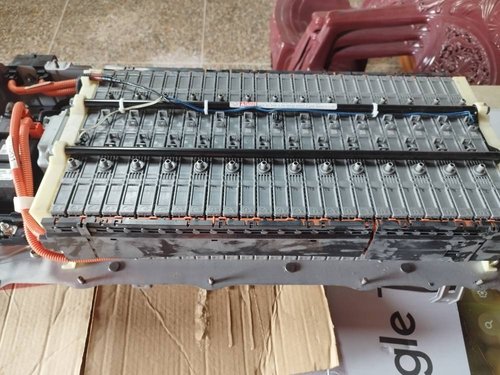

Uninstalled old NiMh modules, reused frame for new modules. Torqued end plates
Torqued battery to case hold down bolts

Supra GT-FOUR · Postby **Supra GT-FOUR** » May 12th, 2024, 7:37 pm

Reassembled everything else.
Reinstallation was a pain. My back has disowned me.
Ran Dr.Prius life expectancy test 103%

Average km/l before replacement was 18.5 (over 2500 kms)
Km/l after replacement 26.5 this is 62mpg (this is only over one trip though normal driving no maximum efficiency techniques employed).

sMASH · Postby **sMASH** » May 12th, 2024, 7:55 pm

Where u sourced the new cells from?
As well, what's the operating voltage of that battery?

Supra GT-FOUR · Postby **Supra GT-FOUR** » May 12th, 2024, 8:28 pm

sMASH wrote:Where u sourced the new cells from?
As well, what's the operating voltage of that battery?

Cells sourced new from China.
Operating voltage is 28 x 8= 224V

pugboy · Postby **pugboy** » May 12th, 2024, 8:40 pm

You just order how many cells you needed and shipped by ocean?

Supra GT-FOUR wrote:
sMASH wrote:Where u sourced the new cells from?
As well, what's the operating voltage of that battery?
Cells sourced new from China.
Operating voltage is 28 x 8= 224V

Supra GT-FOUR · Postby **Supra GT-FOUR** » May 12th, 2024, 10:05 pm

pugboy wrote:You just order how many cells you needed and shipped by ocean?

Supra GT-FOUR wrote:
sMASH wrote:Where u sourced the new cells from?
As well, what's the operating voltage of that battery?
Cells sourced new from China.
Operating voltage is 28 x 8= 224V

In a nutshell yes
Not by ocean... Air freight UPS
