Re: Building a house in Trinidad

Postby pugboy » July 13th, 2021, 6:47 pm

i wonder what exactly the sand filter filtering
in terms of physical particles or not

Gladiator
punchin NOS
Posts: 3084
Joined: April 20th, 2006, 9:43 am

Re: Building a house in Trinidad

Postby Gladiator » July 13th, 2021, 10:38 pm

The sand filter is more for proper water absorbtion into the soil and even drainaige into the boulders/coarse gravel. section The key is to increase surfice area that would encourage microbial growth to break down the nutrients in the effluent.

With the old design people would say the boulders is to "filter" the water. The boulders was just to reinforce the hole to ensure it didnt collapse. The surface area of the boulders would again redistribute the water, slow it down and grow microbes to aid in nutrient treatment.

pugboy
TriniTuner 24-7
Posts: 16371
Joined: September 6th, 2003, 6:18 pm

Re: Building a house in Trinidad

Postby pugboy » July 13th, 2021, 10:45 pm

i wonder how them soakaway does look when you dig up an old one

Gladiator
punchin NOS
Posts: 3084
Joined: April 20th, 2006, 9:43 am

Re: Building a house in Trinidad

Postby Gladiator » July 13th, 2021, 11:34 pm

pugboy wrote:i wonder how them soakaway does look when you dig up an old one


It forms a thick slime called a biomat... smells bad also. If you pay enough, there are contractors that will dig it up, wash out the boulders and reuse it...

User avatar
carluva
Riding on 17's
Posts: 1581
Joined: October 3rd, 2005, 2:03 pm
Location: Down in the homeland

Re: Building a house in Trinidad

Postby carluva » July 17th, 2021, 9:47 am

Quick update and question.

I excavated to locate the existing soakaway.

The line from the septic tank to the soakaway was blocked with some big stones which was restricting the flow. The stones were cleared, after much effort, to improve the flow, but there are still blockages. Our guess is that over years, the pressure of the subsurface water pushed stones into the only void which was the 4" line.

I originally planned to do over the soakaway only, but now I have decided to condemn the cesspit and do a new one.... Never know what could happen in the future plus the incremental cost to do the new cesspit as I am in the ground is smaller compare to a future redo.

Here's the question. Earlier, a few shots from the TT standard were posted. For cases where the water table is within 1.8m, a seepage pit is not recommended. The standard does not go further to state what to do in such cases. In planning and thinking ahead, does anyone know what septic system design applies if the water table is higher than 1.8m below grade? I have not started major excavation, but curious to know what would apply if a high water table is encountered.

pugboy
TriniTuner 24-7
Posts: 16371
Joined: September 6th, 2003, 6:18 pm

Re: Building a house in Trinidad

Postby pugboy » July 17th, 2021, 11:47 am

any pics of the soakaway?
curious to see how an old one looks

User avatar
carluva
Riding on 17's
Posts: 1581
Joined: October 3rd, 2005, 2:03 pm
Location: Down in the homeland

Re: Building a house in Trinidad

Postby carluva » July 17th, 2021, 1:14 pm

Not much to see. All that is visible is the line from the septic tank into the soakaway. The majority of stones and material has been removed to be able to free the line and to create a void (pit) from where I can treat the water (as best as I can) and then discard occasionally until the new system is up and running.

I will however post pics and updates on the progress of the job once started.

By the way, if I don't have depth, I can make up volume by increasing length and breadth of everything else. That ought to take care of higher water table.

marcop2487
Street 2NR
Posts: 53
Joined: February 2nd, 2019, 2:18 am

Re: Building a house in Trinidad

Postby marcop2487 » July 22nd, 2021, 2:22 am

Does anyone have 3/4” plyboard and boxing board available for sale at a decent price. New or used in good condition is okay as well.

marcop2487
Street 2NR
Posts: 53
Joined: February 2nd, 2019, 2:18 am

Re: Building a house in Trinidad

Postby marcop2487 » July 22nd, 2021, 2:22 am

Does anyone have 3/4” plyboard and boxing board available for sale at a decent price. New or used in good condition is okay as well.

User avatar
worksux101
3NE 2NR Moderator
Posts: 9609
Joined: June 25th, 2003, 8:42 am
Location: A Racetrack near you...
Contact:

Re: Building a house in Trinidad

Postby worksux101 » July 24th, 2021, 3:15 pm

Any recommendations for house movers? A few appliances and bits of furniture

User avatar
shake d livin wake d dead
TunerGod
Posts: 27326
Joined: July 20th, 2009, 1:25 pm
Location: all over

Re: Building a house in Trinidad

Postby shake d livin wake d dead » July 24th, 2021, 3:41 pm

worksux101 wrote:Any recommendations for house movers? A few appliances and bits of furniture


Depending on the area, I have a padna with a good size open tray who does transport for furniture plus. If you interested, I could send you the #. He from Freeport side

Jerry84
3NE 2NR for life
Posts: 143
Joined: September 27th, 2011, 12:29 am

Re: Building a house in Trinidad

Postby Jerry84 » Yesterday, 4:04 pm

Good day. Not sure if this was covered before but I was wondering what options I have in making my bathroom bug proof.
I have a vent that's approximately 2ft x 1ft. Want to maintain the vent but just prevent insects (mosquitoes, flies and roaches) from coming in. Also I was thinking of a diy fix as I really don't want to open my house up to potential exposure to the virus (my daughter was dreamed high risk).
Any suggestions are welcomed.

User avatar
ProtonPowder
Riding on 17's
Posts: 1414
Joined: April 2nd, 2018, 1:15 pm

Re: Building a house in Trinidad

Postby ProtonPowder » Yesterday, 5:26 pm

Jerry84 wrote:Good day. Not sure if this was covered before but I was wondering what options I have in making my bathroom bug proof.
I have a vent that's approximately 2ft x 1ft. Want to maintain the vent but just prevent insects (mosquitoes, flies and roaches) from coming in. Also I was thinking of a diy fix as I really don't want to open my house up to potential exposure to the virus (my daughter was dreamed high risk).
Any suggestions are welcomed.

womens' pantyhose/stockings are a good diy dust/bug screen material

adnj
punchin NOS
Posts: 3790
Joined: February 24th, 2014, 2:55 pm

Re: Building a house in Trinidad

Postby adnj » Yesterday, 6:08 pm

You can use a piece of wire or fiberglass screen from the hardware or from scrap.

Build a frame from wood or just use a hot-melt glue gun to put a bead of glue around the opening a bit at a time. Trim the excess away once the adhesive has cured.

Jerry84
3NE 2NR for life
Posts: 143
Joined: September 27th, 2011, 12:29 am

Re: Building a house in Trinidad

Postby Jerry84 » Yesterday, 6:55 pm

Thanks for the suggestions
adnj wrote:You can use a piece of wire or fiberglass screen from the hardware or from scrap.

Build a frame from wood or just use a hot-melt glue gun to put a bead of glue around the opening a bit at a time. Trim the excess away once the adhesive has cured.

Can you advise as to what exactly is the fiberglass screen you're referring too and which hardware I may be able to get it from?

I've been to a couple hardwares in the San Juan area and none seem to have anything for this purpose

adnj
punchin NOS
Posts: 3790
Joined: February 24th, 2014, 2:55 pm

Re: Building a house in Trinidad

Postby adnj » Yesterday, 7:17 pm

Jerry84 wrote:Thanks for the suggestions
adnj wrote:You can use a piece of wire or fiberglass screen from the hardware or from scrap.

Build a frame from wood or just use a hot-melt glue gun to put a bead of glue around the opening a bit at a time. Trim the excess away once the adhesive has cured.

Can you advise as to what exactly is the fiberglass screen you're referring too and which hardware I may be able to get it from?

I've been to a couple hardwares in the San Juan area and none seem to have anything for this purpose
They would probably call it "mosquito mesh." The same thing that you would use on a window or door.

It will typically come on a 3 foot roll. It's inexpensive so buy extra just in case of errors.

User avatar
Duane 3NE 2NR
Admin
Posts: 23593
Joined: March 24th, 2003, 10:27 am
Location: T&T
Contact:

Re: Building a house in Trinidad

Postby Duane 3NE 2NR » Yesterday, 9:52 pm

Jerry84 wrote:Thanks for the suggestions
adnj wrote:You can use a piece of wire or fiberglass screen from the hardware or from scrap.

Build a frame from wood or just use a hot-melt glue gun to put a bead of glue around the opening a bit at a time. Trim the excess away once the adhesive has cured.

Can you advise as to what exactly is the fiberglass screen you're referring too and which hardware I may be able to get it from?

I've been to a couple hardwares in the San Juan area and none seem to have anything for this purpose

Fibreglass screen mesh looks like this and sold by the foot from the roll


User avatar
carluva
Riding on 17's
Posts: 1581
Joined: October 3rd, 2005, 2:03 pm
Location: Down in the homeland

Re: Building a house in Trinidad

Postby carluva » Today, 11:32 am

First round of pics for the septic tank work.

Pump sump base made.

Septic tank Lids framed up and ready to cast.

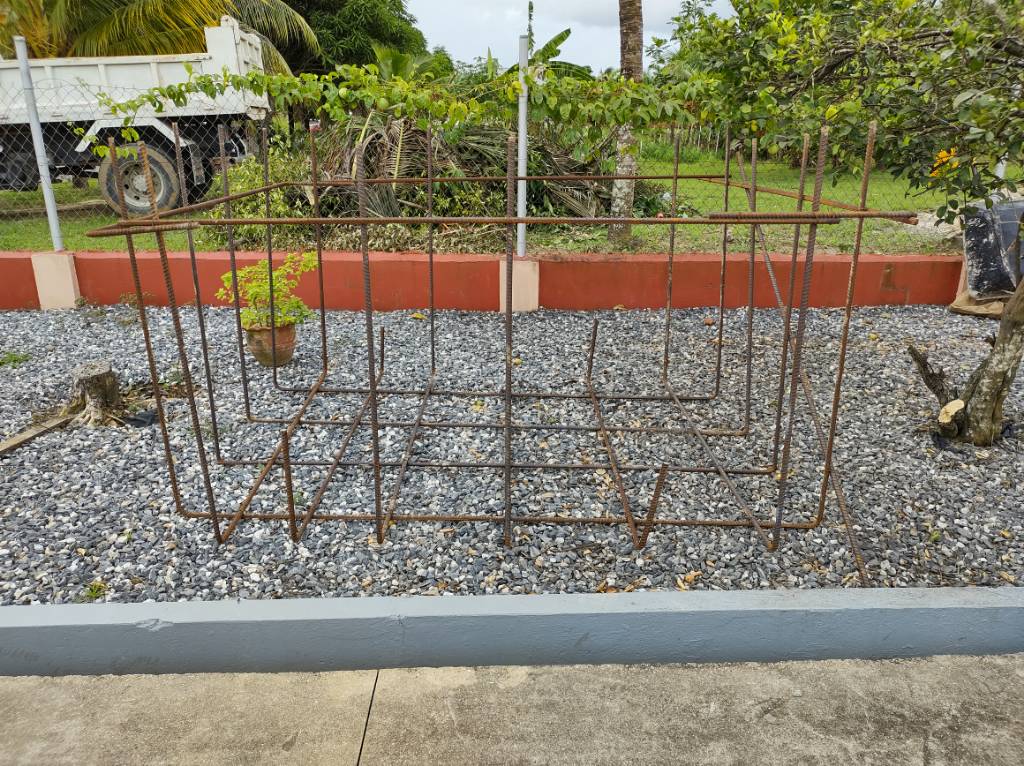

Steel work bent for septic tank.

Line from existing septic tank identified and trench cut across the top of the existing tank to allow for extending the line to the new system.

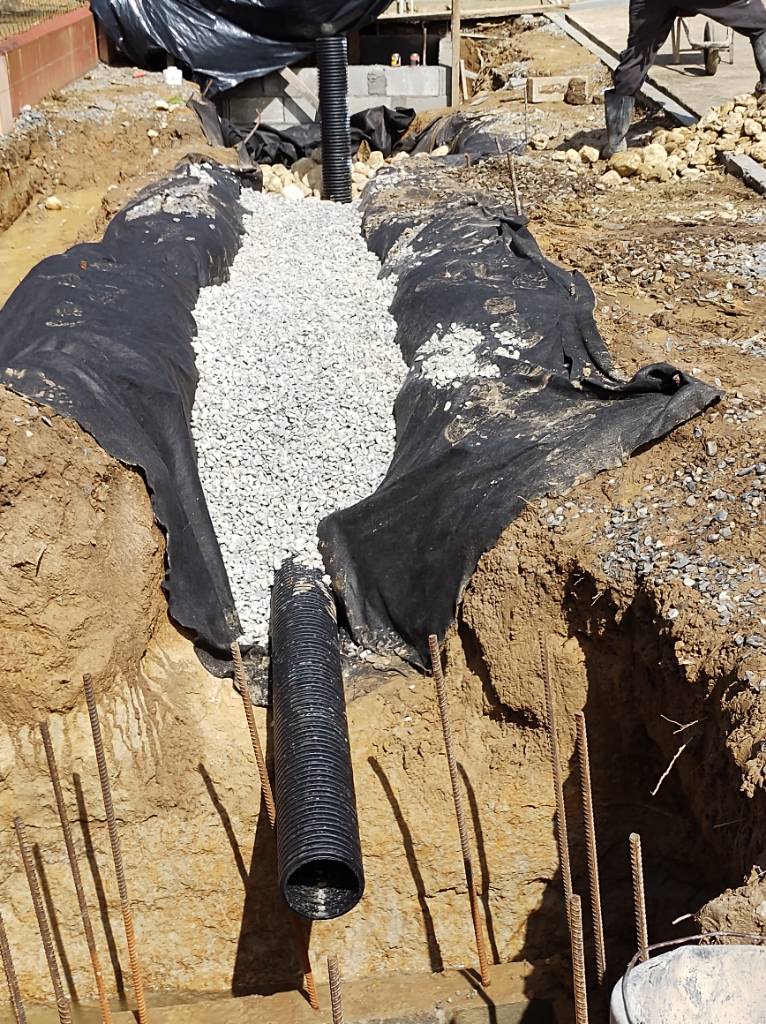

Perforated pipe on site for lines from soakaway into rubble drain (6") and for a higher rubble drain to handle surface water (4"). Geotextile fabric onsite for lining the soakaway and rubble drains.

Sulphur resistant cement ordered from TCL for use in all areas where sewage and black water are/may be.

Sump pump purchased for interim use is dewatering holes as required. Will be repurposed as effluent pump after.

Backhoe was planned for today but didn't proceed due to weather. Hoping to excavate on Friday once weather is decent.
